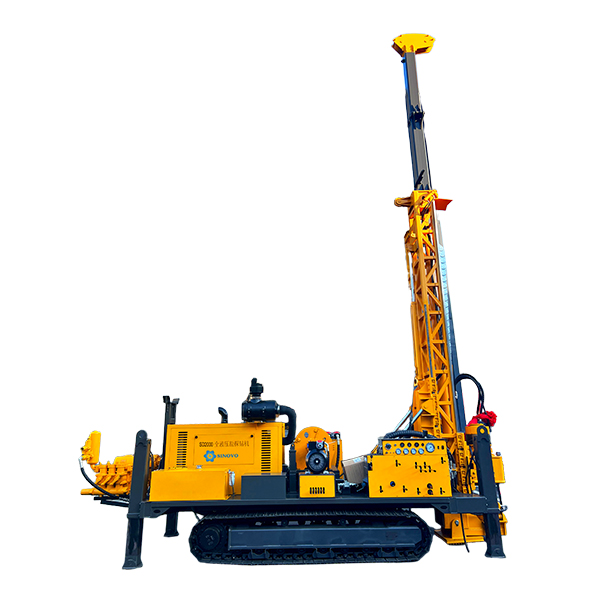

SD2000 Core Drilling Rig
The SD2000 municipal-level drilling rig is designed for ultra-deep core drilling in the 2000-2500 meter range. It utilizes advanced foreign technology and features a more mature rotary head unit, clamping mechanism, winch, and hydraulic system. It is suitable not only for diamond and cemented carbide drilling in solid rock formations but also for seismic geological exploration, engineering geological surveys, micro-pile drilling, and the construction of small and medium-sized wells
Model : SD2000
Max. Drilling Depth: 2500-2000-1400m;
Drilling diameter: BQ-NQ-HQ
Driveing Type: Hydraulic
Walking Type: Crawler

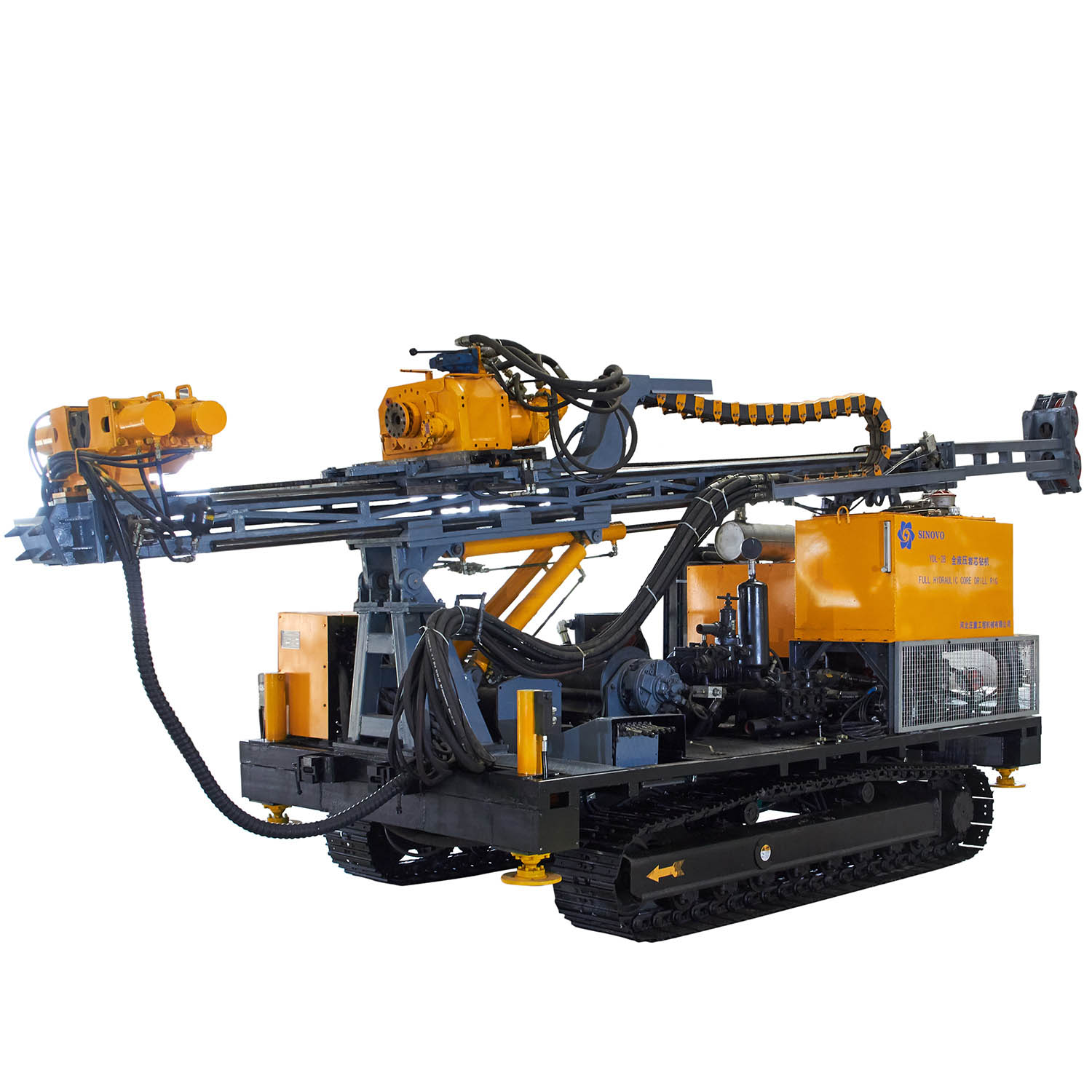

SD1000 Core Drilling Rig
The SD1000 series is a fully hydraulically driven drilling rig designed for deep core drilling at depths exceeding 1000 meters. It meets the requirements of various complex processes such as diamond wireline coring and carbide drilling, and is widely used in geological exploration, deep metal mining, engineering geological surveys, and hydrological well projects.
Model : SD1000
Max. Drilling Depth: 1000-600-400-200m;
Drilling diameter: BQ-NQ-HQ-PQ
Driveing Type: Hydraulic
Walking Type: Crawler
Model : SD1000HD
Max. Drilling Depth: 1400-1100-500m;
Drilling diameter: BTW-NTW-HTW
Driveing Type: Hydraulic
Walking Type: Crawler

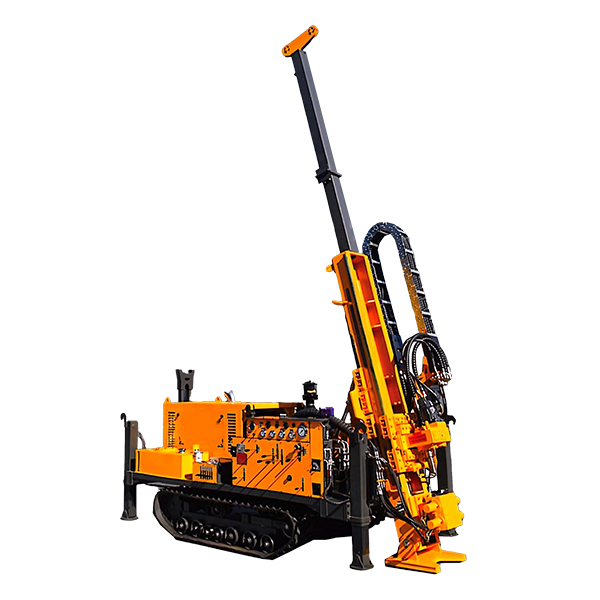

SD600 Core Drilling Rig
The SD600 series is a tracked, fully hydraulic power head core drilling rig, combining a diesel engine with an advanced hydraulic system to provide powerful support for deep coring. This series of rigs is primarily suitable for diamond drilling and carbide drilling, and is widely used in geological exploration, metal mining, engineering geological surveys, hydrological wells, and deep-hole drilling in various complex formations.
Model : SD600
Max. Drilling Depth: 350-700-800m;
Drilling diameter: HTW-NTW-BTW
Driveing Type: Hydraulic
Walking Type: Crawler

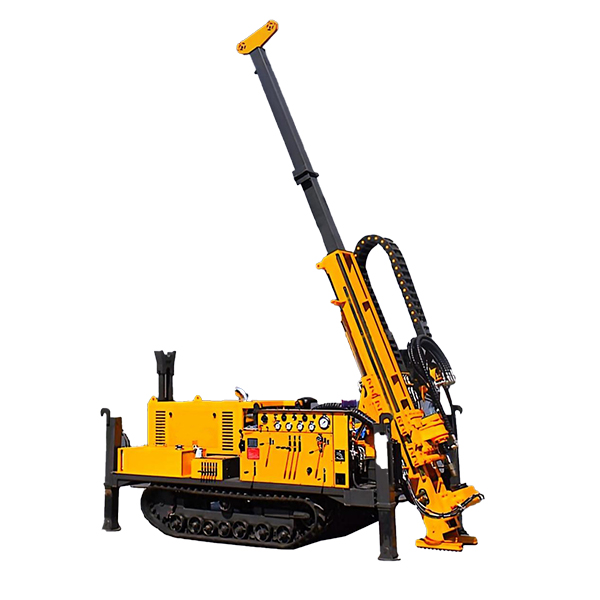

SD400 Core Drilling Rig
The SD-400 fully hydraulic core drilling rig is a tracked, multi-functional, fully hydraulic drilling device. It integrates percussion drilling and rotary drilling, offering three functions in one machine. It can be widely used in geological exploration, metal mining, engineering geological surveys, hydrological well drilling, and core drilling in various complex strata.
Model :SD400
Max. Drilling Depth: 200-400-500m;
Drilling diameter: HTW-NTW-BTW
Driveing Type: Hydraulic
Walking Type: Crawler

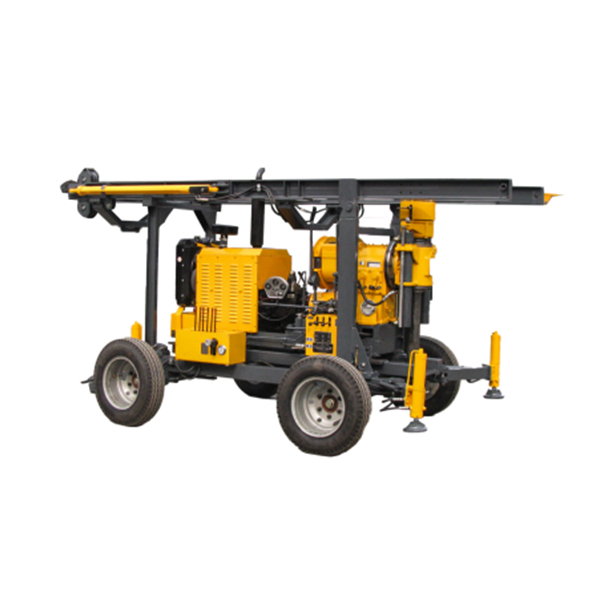

Tailer-Type Core Drilling Rigs
The XYT series trailer-mounted core drilling rig features four hydraulic jacks for stable support. The mast is hydraulically controlled for automatic raising and lowering. The entire unit is mounted on a trailer for easy movement and is primarily used for core drilling, soil exploration, small water well drilling, and diamond bit drilling operations.
Model : XYT-1A, XYT-1B, XYT-200 , XYT-2B
Max. Drilling Depth: 100,180m;200m, 300m
Drilling diameter: 150mm
Driveing Type: Spindle type, hydraulic mast
Walking Type: Trailer
XY200 Core drilling rig
XY-200 while lightweight and portable, features high torque, automatic hydraulic feed, and a backup gear reverse rotation function. It can be used for drilling in railways, hydropower, transportation, bridges, dam foundations, small wells, small grouting holes, and blasting holes.
Model : XY-200
Max. Drilling Depth: 200m
Drilling diameter: 75mm
Driveing Type: Mechanical
Walking Type: Skid, Crawler, Trailer and Truck as optional
