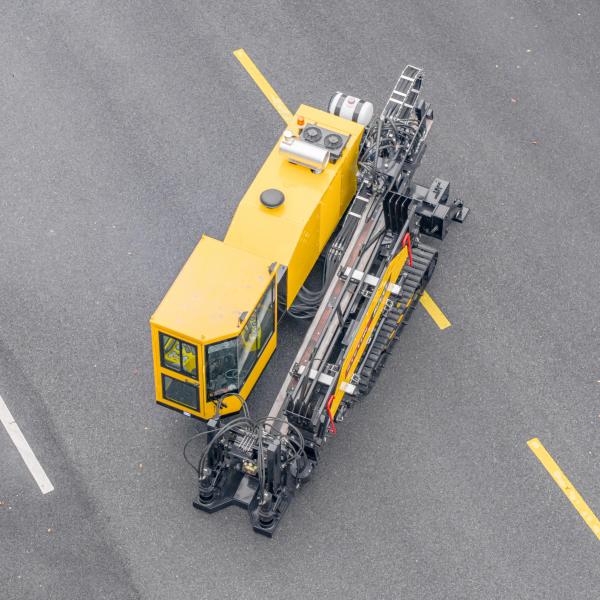

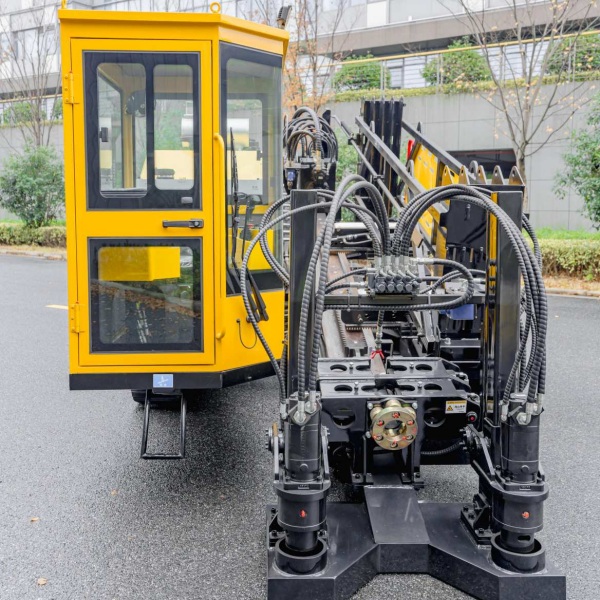

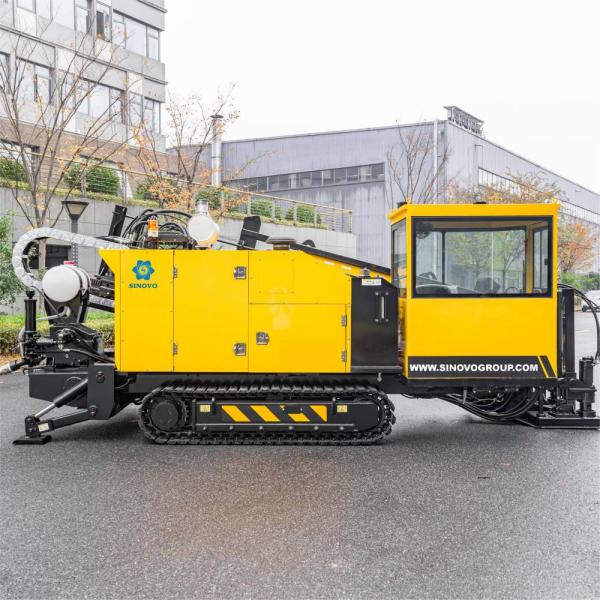

SHD20 Horizontal Directional Drill
The SHD series horizontal directional drilling rig is mainly used for laying and updating pipelines for water supply, gas, electricity, telecommunications, oil, natural gas, etc. under difficult excavation conditions such as crossing highways, railways, buildings, rivers, as well as downtown areas, cultural relics protection areas, crop and vegetation protection areas. Crossing diameter 150mm-2000mm, crossing length 100-2000 meters.
Model: SHD20
Engine power: 110 KW
Max. Thrust force: 200KN
Max. Pullback force: 200KN
Max. Torque: 6000N.M
Max. diameter of pullback pipe: φ150~φ700mm
Max. construction length: ~500m
Model: SHD20
Engine power: 110 KW
Max. Thrust force: 200KN
Max. Pullback force: 200KN
Max. Torque: 6000N.M
Max. diameter of pullback pipe: φ150~φ700mm
Max. construction length: ~500m
Driven by a high-torque Eaton motor and a fuel-efficient Cummins engine, this HDD system is a specialized solution for high-speed urban utility installation. Its D60×3000mm drill rod configuration and wireless remote-controlled chassis allow for maximum productivity in confined work sites, while the ergonomic, three-speed adjustable control system ensures precision and reduced operator fatigue in the most demanding environments.
- Equipped with a Cummins engine: powerful output, stable performance, low fuel consumption and low noise, making it ideal for urban construction.
- The rotation of the power head is directly driven by a high-torque Eaton cycloidal motor from the United States, delivering high torque and reliable performance. The rotation speed is stepless adjustable in two ranges, and the push-pull speed is adjustable in three gears, leading the industry in construction efficiency. A pull-boost function is reserved to expand the scope of operation.
- Fitted with a Permco hydraulic gear pump from the United States; the crawler chassis supports wireless remote control travel, enabling convenient and fast loading, unloading and relocation. The operator console is ergonomically designed for comfortable operation, greatly reducing operator fatigue, with a wide field of vision and a comfortable operating experience.
- Equipped with D60×3000mm drill rods, the machine features a compact footprint to meet the requirements of efficient operation in confined work sites.
- The electrical system is scientifically and rationally designed with a low failure rate and easy maintenance.
- The whole machine has an attractive and decent appearance with convenient maintenance, fully embodying a people-oriented design concept.
Parameters
| Model | Unit | SHD20 |
|---|---|---|
| Engine | CUMMINS | |
| Rated power | KW | 110/2200 |
| Max.pullback force | KN | 200 |
| Max. thrusting force | KN | 200 |
| Spindle torque(max) | N.m | 6000 |
| Spindle speed | r/min | 0-180 |
| Backreaming diameter | mm | 150-700 |
| Length of drilling rod | m | 3 |
| Diameter of drilling rod | mm | 60 |
| Entry angle | ° | 11–20 |
| Max mud pressure (max) | Mpa | 8±0.5 |
| Mud pump flow (max) | L/min | 250 |
| Dimension (L* W* H) | mm | 6100*2000*2350 |
| Overall weight | t | 7 |
