Products
SHD75 Horizontal Directional Drill
The SHD series horizontal directional drilling rig is mainly used for laying and updating pipelines for water supply, gas, electricity, telecommunications, oil, natural gas, etc. under difficult excavation conditions such as crossing highways, railways, buildings, rivers, as well as downtown areas, cultural relics protection areas, crop and vegetation protection areas. Crossing diameter 150mm-2000mm, crossing length 100-2000 meters.
Model: SHD75
Engine power: 264KW
Max. Thrust force: 750/1500KN(with booster)
Max. Pullback force: 750/1500KN(with booster)
Max. Torque: 40000N.M
Max. diameter of pullback pipe: φ200~φ1500mm
Max. construction length: ~900m
SHD80 Horizontal Directional Drill
The SHD series horizontal directional drilling rig is mainly used for laying and updating pipelines for water supply, gas, electricity, telecommunications, oil, natural gas, etc. under difficult excavation conditions such as crossing highways, railways, buildings, rivers, as well as downtown areas, cultural relics protection areas, crop and vegetation protection areas. Crossing diameter 150mm-2000mm, crossing length 100-2000 meters.
Model: SHD80
Engine power: 264KW
Max. Thrust force: 800/1600KN(with booster)
Max. Pullback force: 800/1600KN(with booster)
Max. Torque: 40000N.M
Max. diameter of pullback pipe: φ300~φ1500mm
Max. construction length: ~1000m
SHD135 Horizontal Directional Drill
The SHD series horizontal directional drilling rig is mainly used for laying and updating pipelines for water supply, gas, electricity, telecommunications, oil, natural gas, etc. under difficult excavation conditions such as crossing highways, railways, buildings, rivers, as well as downtown areas, cultural relics protection areas, crop and vegetation protection areas. Crossing diameter 150mm-2000mm, crossing length 100-2000 meters.
Model: SHD135
Engine power: 264KW
Max. Thrust force: 1350/2000KN(with booster)
Max. Pullback force: 1350/2000KN(with booster)
Max. Torque: 55000N.M
Max. diameter of pullback pipe: φ300~φ1500mm
Max. construction length: ~1000m

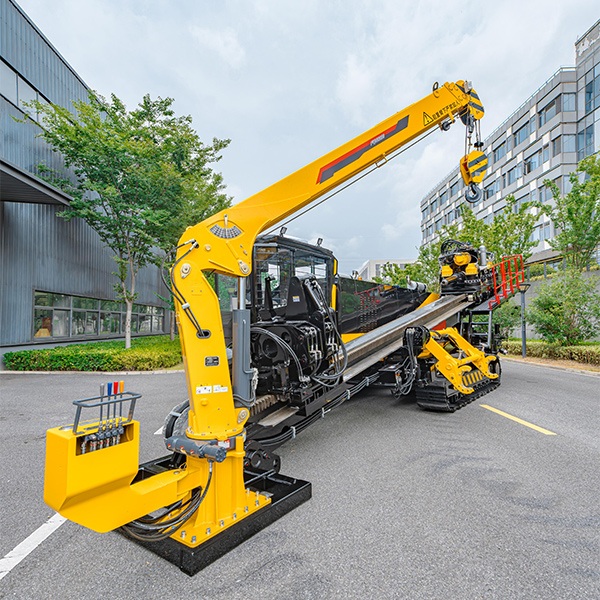

SHD220 Horizontal Directional Drill
The SHD series horizontal directional drilling rig is mainly used for laying and updating pipelines for water supply, gas, electricity, telecommunications, oil, natural gas, etc. under difficult excavation conditions such as crossing highways, railways, buildings, rivers, as well as downtown areas, cultural relics protection areas, crop and vegetation protection areas. Crossing diameter 150mm-2000mm, crossing length 100-2000 meters.
Model: SHD220
Engine power: 2*264KW
Max. Thrust force: 2200/3000KN(with booster)
Max. Pullback force: 2200/3000KN(with booster)
Max. Torque: 85000N.M
Max. diameter of pullback pipe: φ300~φ1500mm
Max. construction length: ~1500m
SHD380 Horizontal Directional Drill
The SHD series horizontal directional drilling rig is mainly used for laying and updating pipelines for water supply, gas, electricity, telecommunications, oil, natural gas, etc. under difficult excavation conditions such as crossing highways, railways, buildings, rivers, as well as downtown areas, cultural relics protection areas, crop and vegetation protection areas. Crossing diameter 150mm-2000mm, crossing length 100-2000 meters.
Model: SHD380
Engine power: 2*295KW
Max. Thrust force: 3800KN
Max. Pullback force: 3800KN
Max. Torque: 138000N.M
Max. diameter of pullback pipe: φ300~φ2000mm
Max. construction length: ~2000m
FREQUENTLY ASKED QUESTIONS
Have Any Questions
-
Are you a manufacturer, trading company or a third party?
We are a manufacturer. Our factory is located in Hebei Province near the capital Beijing,100km away from Tianjin port. We also have our own trading company.
-
Wonder if you accept small orders?
Do not worry.Feel free to contact us. in order to get more orders and give our clients more con-
vener,we accept small order. -
Can you send products to my country?
Sure,we can. If you do not have your own ship forwarder, we can help you.
-
Can you do OEM for me?
We accept all OEM orders, just contact us and give me your design. We will offer you a reasonable price and make samples for you ASAP.
-
What's your payment terms?
By T/T,L/C AT SIGHT,30%deposit in advance,balance 70%before shipment.
-
How can I place the order?
First sign the Pl, pay deposit, then we will arrange the production. After finished production need you pay balance. Finally we will ship the Goods.
-
When can l get the quotation?
We usually quote you within 24 hours after we get your inquiry. If you are very urgent to get the quotation. Please call us or tell us in your mail, so that we could regard your inquiry priority.
-
Is your price competitive?
Only good quality product we supply. Surely we will give you best factory price based on superi- or product and service.
